BMW U11 X1 xLine Utah orange metallic three quarter front view still in front of building

THE X1

BMW X1: ENGINES & TECHNICAL DATA.

THE X1 BMW X1: ENGINES & TECHNICAL DATA.
BMW X1: Highlights

The key facts and figures for the BMW X1 at a glance:

  • Engine, consumption and CO2 emissions
  • Performance data such as displacement, hp, Nm and acceleration
  • Weight, dimensions, wheel and tyre sizes
Read more

TECHNICAL DATA.

Select model

Total Powertrain [1][2]

Powertrain type Petrol - plug-in hybrid
Power in kW (hp) 180 (245) [9]
Torque in Nm 477 [9]
Transmission 7-speed, automatic
Drivetrain All-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 3
Displacement in cm3 1499
Nominal power in kW (hp)/1/min 100 (136)/4400-6500
Nominal torque in Nm/1/min 230/1500-4000

Electric motor [2][3]

(Nominal) power/30 minutes power in kW (hp) 80 (109)/60 (82)
(Nominal) torque in Nm 247

Performance

Acceleration 0–100 km/h in s 6.8
Maximum speed in km/h 190
Electric top speed in km/h 140

Fuel economy/CO2 emissions [1][4]

Fuel consumption, combined WLTP in l/100 km [5] 1.0-0.7
CO2 emissions, combined WLTP in g/km [5] 22-15
Energy consumption, combined WLTP in kWh/100 km (5) 16.8-14.6
Electric range, WLTP in km [6] 77-91

High-voltage/48 volt battery, charging [7]

Battery capacity in kWh 14.2
Maximum charging power AC/DC in kW 7.4/-
Charging time DC 10–80% in min -
Charging time AC 0–100% in h 2.5

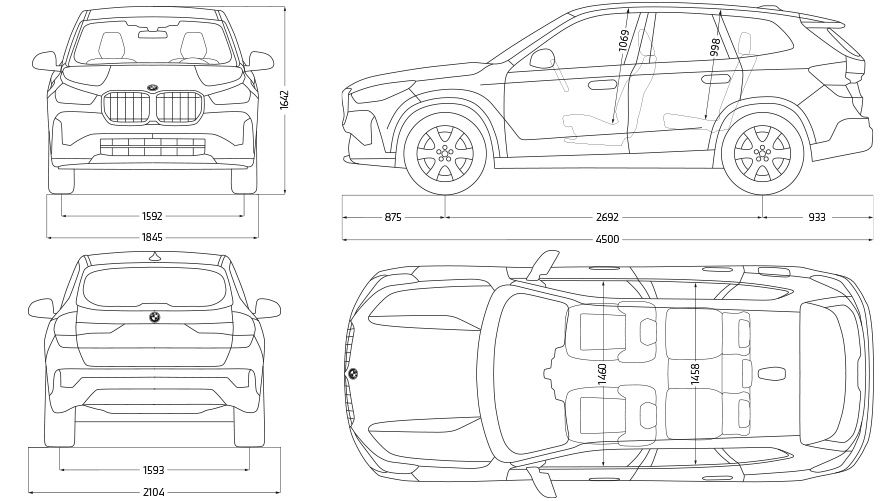

Dimensions/weights

Length/width/height in mm 4500/1845/1630
Wheelbase in mm 2692
Curb weight in kg [8] 1930
Luggage capacity in l 490-1495
Fuel capacity in l 47
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 1700/80

Total Powertrain [1][2]

Powertrain type Petrol - plug-in hybrid
Power in kW (hp) 240 (326) [9]
Torque in Nm 477 [9]
Transmission 7-speed, automatic
Drivetrain All-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 3
Displacement in cm3 1499
Nominal power in kW (hp)/1/min 110 (150)/4700-6500
Nominal torque in Nm/1/min 230/1500-4400

Electric motor [2][3]

(Nominal) power/30 minutes power in kW (hp) 130 (177)/60 (82)
(Nominal) torque in Nm 247

Performance

Acceleration 0–100 km/h in s 5.6
Maximum speed in km/h 205
Electric top speed in km/h 140

Fuel economy/CO2 emissions [1][4]

Fuel consumption, combined WLTP in l/100 km [5] 1.0-0.7
CO2 emissions, combined WLTP in g/km [5] 23-16
Energy consumption, combined WLTP in kWh/100 km (5) 16.9-14.7
Electric range, WLTP in km [6] 76-88

High-voltage/48 volt battery, charging [7]

Battery capacity in kWh 14.2
Maximum charging power AC/DC in kW 7.4/-
Charging time DC 10–80% in min -
Charging time AC 0–100% in h 2.5

Dimensions/weights

Length/width/height in mm 4500/1845/1630
Wheelbase in mm 2692
Curb weight in kg [8] 1935
Luggage capacity in l 490-1495
Fuel capacity in l 47
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 1800/80

Total Powertrain [1][2]

Powertrain type Petrol
Power in kW (hp) 100 (136)
Torque in Nm 230
Transmission 7-speed, automatic
Drivetrain Front-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 3
Displacement in cm3 1499
Nominal power in kW (hp)/1/min 100 (136)/4400-6500
Nominal torque in Nm/1/min 230/1500-4000

Electric motor [2][3]

(Nominal) power/30 minutes power in kW (hp) -
(Nominal) torque in Nm -

Performance

Acceleration 0–100 km/h in s 9.2
Maximum speed in km/h 208
Electric top speed in km/h -

Fuel economy/CO2 emissions [1][4]

Fuel consumption, combined WLTP in l/100 km [5] 7.1-6.3
CO2 emissions, combined WLTP in g/km [5] 159-143
Energy consumption, combined WLTP in kWh/100 km (5) -
Electric range, WLTP in km [6] -

High-voltage/48 volt battery, charging [7]

Battery capacity in kWh -
Maximum charging power AC/DC in kW -
Charging time DC 10–80% in min -
Charging time AC 0–100% in h -

Dimensions/weights

Length/width/height in mm 4500/1845/1642
Wheelbase in mm 2692
Curb weight in kg [8] 1575
Luggage capacity in l 540-1600
Fuel capacity in l 45
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 1700/80

Total Powertrain [1][2]

Powertrain type Petrol - mild hybrid
Power in kW (hp) 125 (170) [10]
Torque in Nm 280 [10]
Transmission 7-speed, automatic
Drivetrain Front-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 3
Displacement in cm3 1499
Nominal power in kW (hp)/1/min 115 (156)/4700-6500
Nominal torque in Nm/1/min 240/1500-4400

Electric motor [2][3]

(Nominal) power/30 minutes power in kW (hp) 14 (19)/10.5 (14)
(Nominal) torque in Nm 55

Performance

Acceleration 0–100 km/h in s 8.3
Maximum speed in km/h 216
Electric top speed in km/h -

Fuel economy/CO2 emissions [1][4]

Fuel consumption, combined WLTP in l/100 km [5] 6.6-5.9
CO2 emissions, combined WLTP in g/km [5] 149-133
Energy consumption, combined WLTP in kWh/100 km (5) -
Electric range, WLTP in km [6] -

High-voltage/48 volt battery, charging [7]

Battery capacity in kWh 0.9
Maximum charging power AC/DC in kW -
Charging time DC 10–80% in min -
Charging time AC 0–100% in h -

Dimensions/weights

Length/width/height in mm 4500/1845/1642
Wheelbase in mm 2692
Curb weight in kg [8] 1625
Luggage capacity in l 500-1545
Fuel capacity in l 45
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 1800/80

Total Powertrain [1][2]

Powertrain type Petrol - mild hybrid
Power in kW (hp) 160 (218) [10]
Torque in Nm 360 [10]
Transmission 7-speed, automatic
Drivetrain All-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 4
Displacement in cm3 1998
Nominal power in kW (hp)/1/min 150 (204)/5000-6500
Nominal torque in Nm/1/min 320/1500-4000

Electric motor [2][3]

(Nominal) power/30 minutes power in kW (hp) 14 (19)/10.5 (14)
(Nominal) torque in Nm 55

Performance

Acceleration 0–100 km/h in s 7.1
Maximum speed in km/h 233
Electric top speed in km/h -

Fuel economy/CO2 emissions [1][4]

Fuel consumption, combined WLTP in l/100 km [5] 7.2-6.5
CO2 emissions, combined WLTP in g/km [5] 163-146
Energy consumption, combined WLTP in kWh/100 km (5) -
Electric range, WLTP in km [6] -

High-voltage/48 volt battery, charging [7]

Battery capacity in kWh 0.9
Maximum charging power AC/DC in kW -
Charging time DC 10–80% in min -
Charging time AC 0–100% in h -

Dimensions/weights

Length/width/height in mm 4500/1845/1642
Wheelbase in mm 2692
Curb weight in kg [8] 1730
Luggage capacity in l 500-1545
Fuel capacity in l 45
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 2000/80

Total Powertrain [1][2]

Powertrain type Diesel
Power in kW (hp) 110 (150)
Torque in Nm 360
Transmission 7-speed, automatic
Drivetrain Front-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 4
Displacement in cm3 1995
Nominal power in kW (hp)/1/min 110 (150)/3750-4000
Nominal torque in Nm/1/min 360/1500-2500

Electric motor [2][3]

(Nominal) power/30 minutes power in kW (hp) -
(Nominal) torque in Nm -

Performance

Acceleration 0–100 km/h in s 8.9
Maximum speed in km/h 210
Electric top speed in km/h -

Fuel economy/CO2 emissions [1][4]

Fuel consumption, combined WLTP in l/100 km [5] 5.5-4.9
CO2 emissions, combined WLTP in g/km [5] 145-129
Energy consumption, combined WLTP in kWh/100 km (5) -
Electric range, WLTP in km [6] -

High-voltage/48 volt battery, charging [7]

Battery capacity in kWh -
Maximum charging power AC/DC in kW -
Charging time DC 10–80% in min -
Charging time AC 0–100% in h -

Dimensions/weights

Length/width/height in mm 4500/1845/1642
Wheelbase in mm 2692
Curb weight in kg [8] 1650
Luggage capacity in l 540-1600
Fuel capacity in l 45
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 1800/80

Total Powertrain [1][2]

Powertrain type Diesel - mild hybrid
Power in kW (hp) 120 (163) [10]
Torque in Nm 400 [10]
Transmission 7-speed, automatic
Drivetrain All-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 4
Displacement in cm3 1995
Nominal power in kW (hp)/1/min 110 (150)/3750-4000
Nominal torque in Nm/1/min 360/1500-2500

Electric motor [2][3]

(Nominal) power/30 minutes power in kW (hp) 14 (19)/10.5 (14)
(Nominal) torque in Nm 55

Performance

Acceleration 0–100 km/h in s 8.6
Maximum speed in km/h 210
Electric top speed in km/h -

Fuel economy/CO2 emissions [1][4]

Fuel consumption, combined WLTP in l/100 km [5] 5.4-4.8
CO2 emissions, combined WLTP in g/km [5] 142-127
Energy consumption, combined WLTP in kWh/100 km (5) -
Electric range, WLTP in km [6] -

High-voltage/48 volt battery, charging [7]

Battery capacity in kWh 0.9
Maximum charging power AC/DC in kW -
Charging time DC 10–80% in min -
Charging time AC 0–100% in h -

Dimensions/weights

Length/width/height in mm 4500/1845/1642
Wheelbase in mm 2692
Curb weight in kg [8] 1765
Luggage capacity in l 500-1545
Fuel capacity in l 45
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 2000/80

Total Powertrain [1][2]

Powertrain type Diesel - mild hybrid
Power in kW (hp) 155 (211) [10]
Torque in Nm 400
Transmission 7-speed, automatic
Drivetrain All-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 4
Displacement in cm3 1995
Nominal power in kW (hp)/1/min 145 (197)/4000
Nominal torque in Nm/1/min 400/1500-2750

Electric motor [2][3]

(Nominal) power/30 minutes power in kW (hp) 14 (19)/10.5 (14)
(Nominal) torque in Nm 55

Performance

Acceleration 0–100 km/h in s 7.4
Maximum speed in km/h 225
Electric top speed in km/h -

Fuel economy/CO2 emissions [1][4]

Fuel consumption, combined WLTP in l/100 km [5] 5.4-4.8
CO2 emissions, combined WLTP in g/km [5] 141-125
Energy consumption, combined WLTP in kWh/100 km (5) -
Electric range, WLTP in km [6] -

High-voltage/48 volt battery, charging [7]

Battery capacity in kWh 0.9
Maximum charging power AC/DC in kW -
Charging time DC 10–80% in min -
Charging time AC 0–100% in h -

Dimensions/weights

Length/width/height in mm 4500/1845/1642
Wheelbase in mm 2692
Curb weight in kg [8] 1765
Luggage capacity in l 500-1545
Fuel capacity in l 45
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 2000/80
Including of /content/bmw/marketB4R1/master/en_BQ/publicPools/teaser-pool/medium-teasers/tyre-energy-lables/jcr:content/par-4col/wideteaser_67 failed

FUEL CONSUMPTION AND CO2 EMISSIONS.

BMW X1 xDrive23i*:
Fuel consumption in l/100 km (combined): 7.3–6.5
CO2 emissions in g/km (combined): 165–146


BMW X1 xDrive30e**
Fuel consumption in l/100 km (combined): 1.1–0.8
CO2 emissions in g/km (combined): xxx–xxx
Power consumption in kWh/100 km (combined): 18,2–16,4



*The values are preliminary.

Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found atwww.bmw.de/wltp


** At temperatures below 0 degrees Celsius, purely electric driving mode of this plug-in hybrid will not be available until the battery has warmed up to an operational condition after the vehicle has travelled a few kilometers.

Read more
​

Fuel consumption and CO2 emissions.

  • BMW X1 xDrive23i(1):
    Fuel consumption in l/100 km (combined): 7.2–6.5
    CO2 emissions in g/km (combined): 163–146

    BMW iX1 xDrive30
    Power consumption in kWh/100 km (combined): 18.4 –17.3
    CO2 emissions in g/km(combined): 0

    (1)Provisional figures; any missing figures were unavailable at the time of publication.

    Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp

    (2)At temperatures below 0 degrees Celsius, purely electric driving mode of this plug-in hybrid will not be available until the battery has warmed up to an operational condition after the vehicle has travelled a few kilometers. The performance depends on the state of charge of the battery. The performance depends on the state of charge of the battery.
